Keepsake Box
(2018)

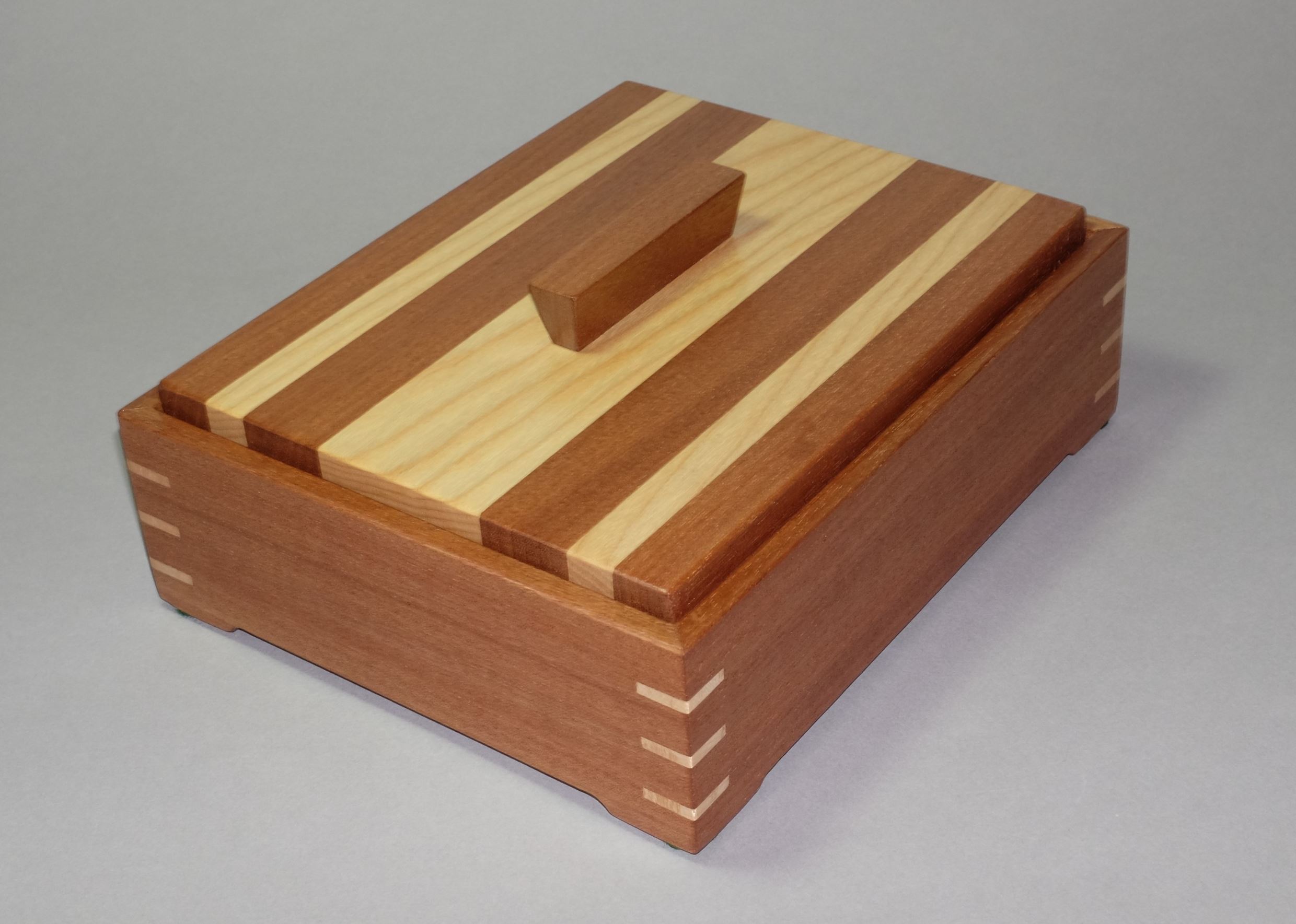

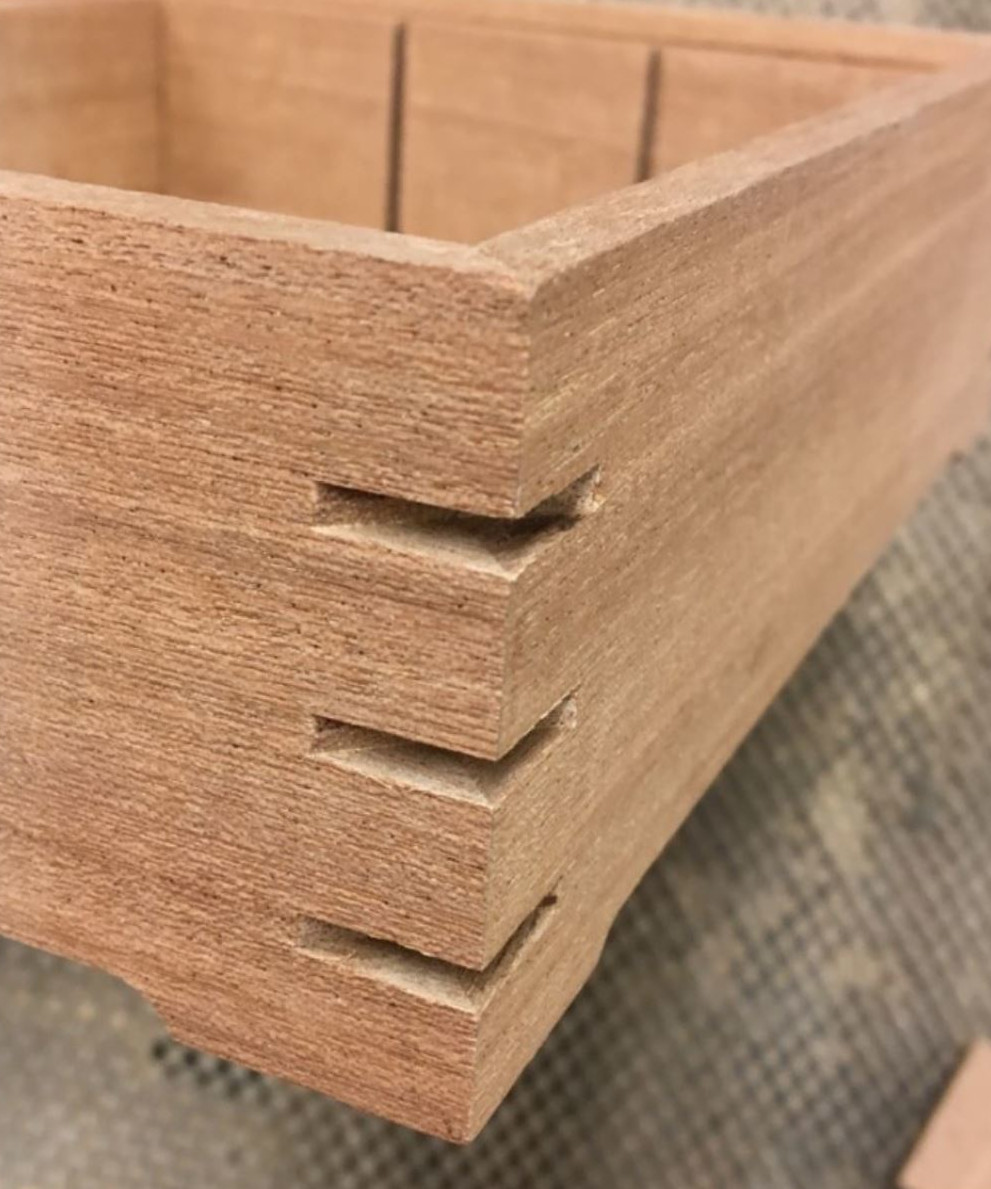

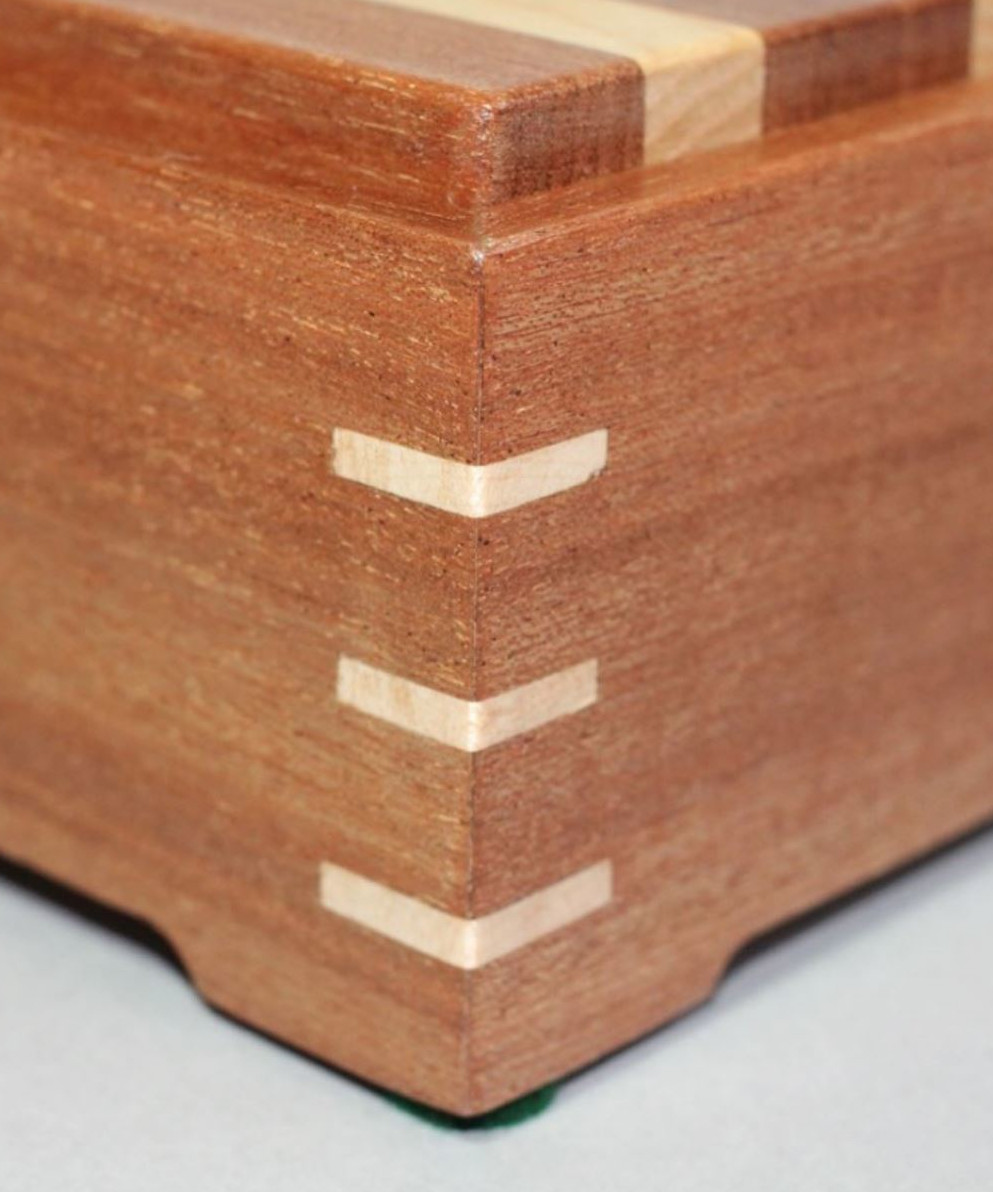

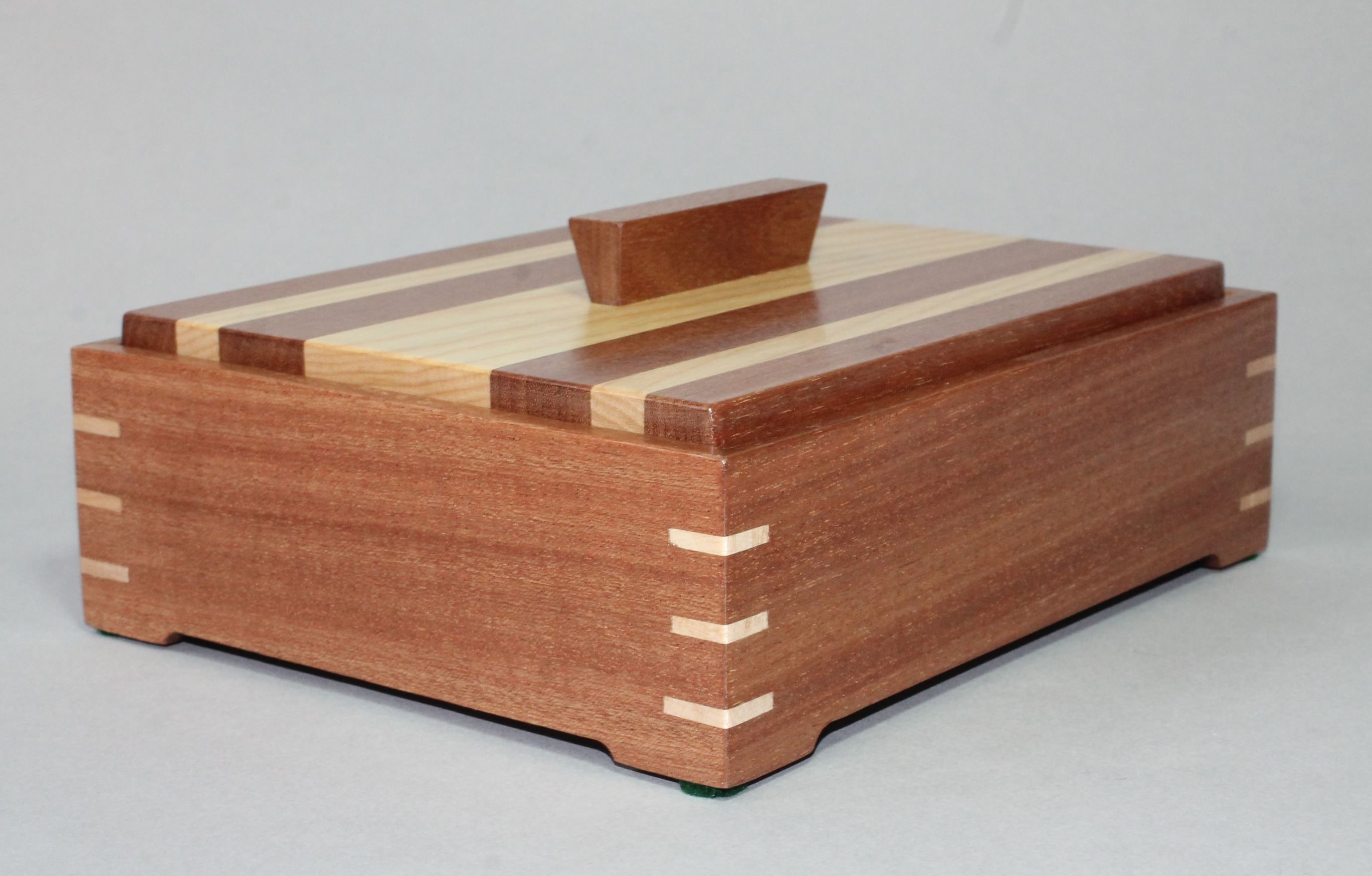

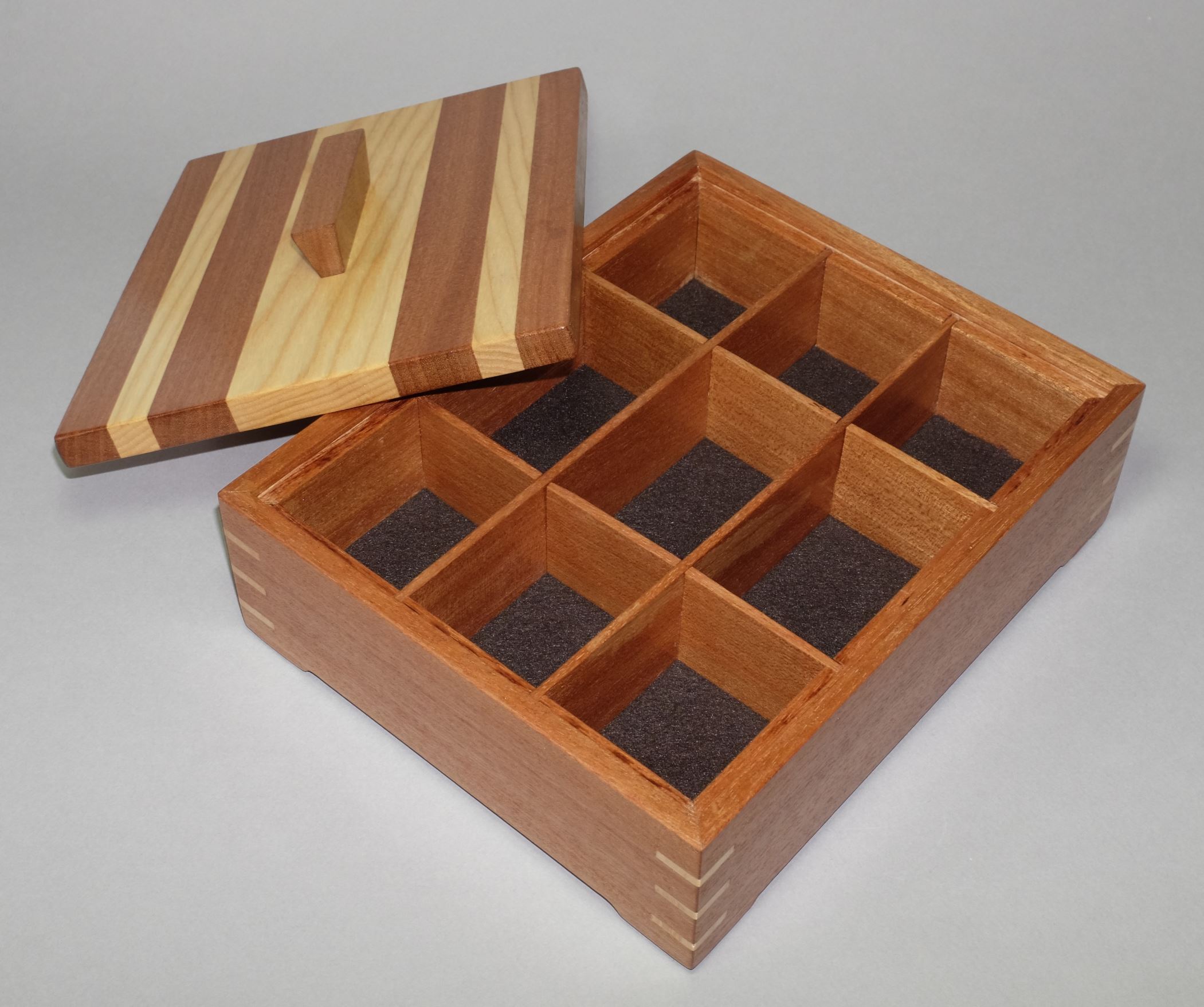

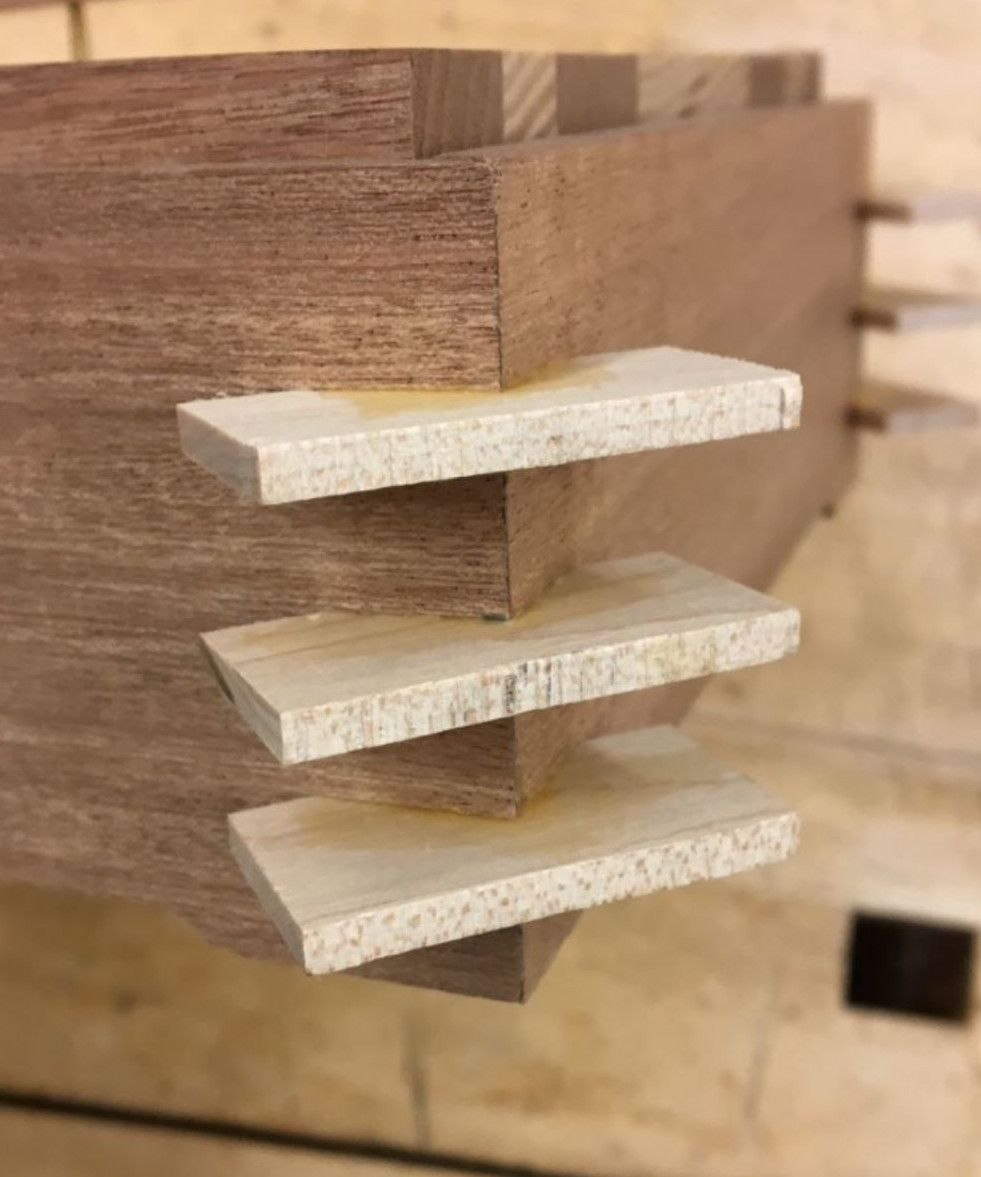

Solid sapele construction with maple corner splines and felt lining. Sapele and white ash lid.
Dimensions: 7” W x 9” L x 3” H
The box has 9 partitions, each 1.5” deep with a felt-lined floor to keep delicate objects safe.

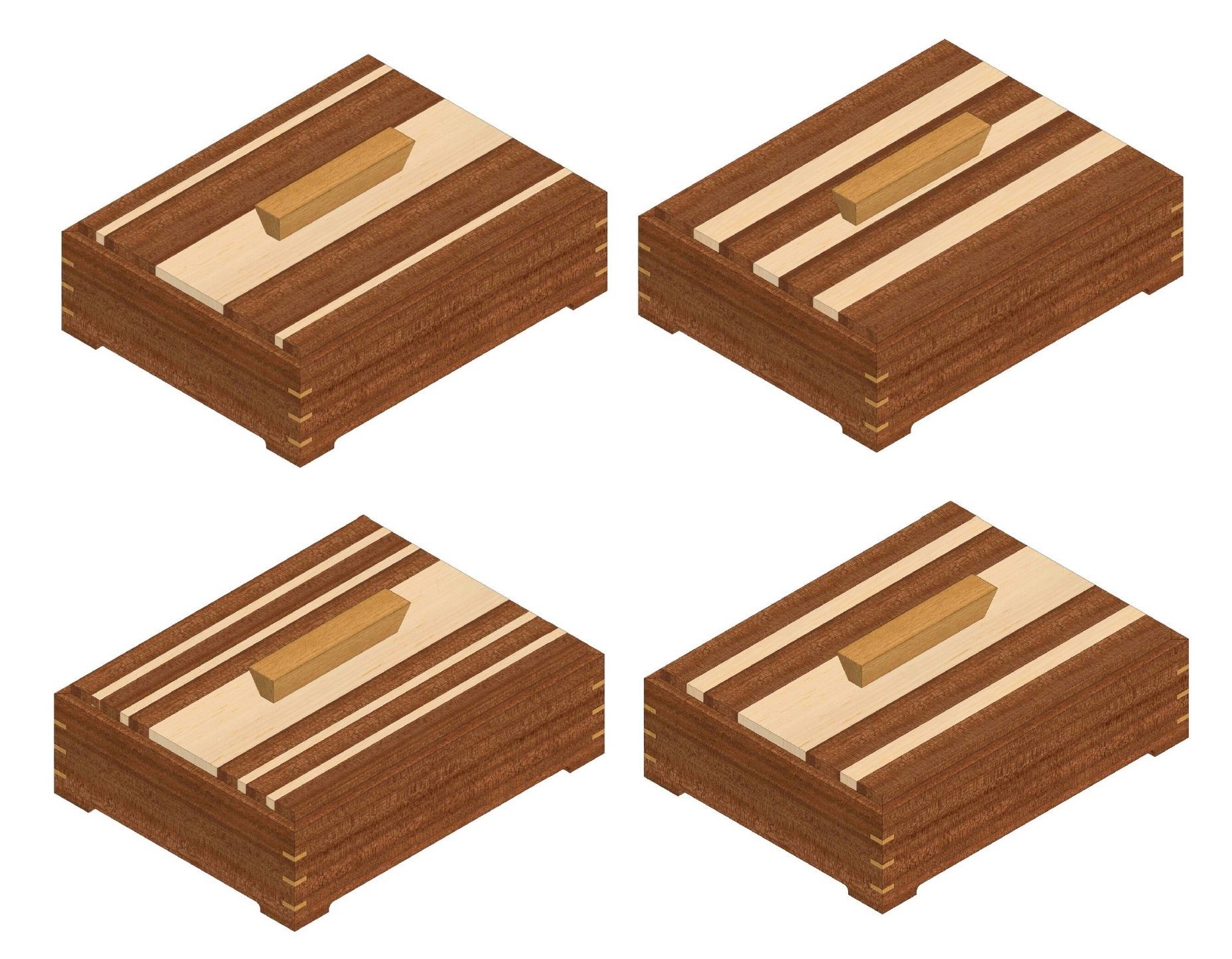

CAD was used to mock up the assembly and choose wood patterns for the lid.

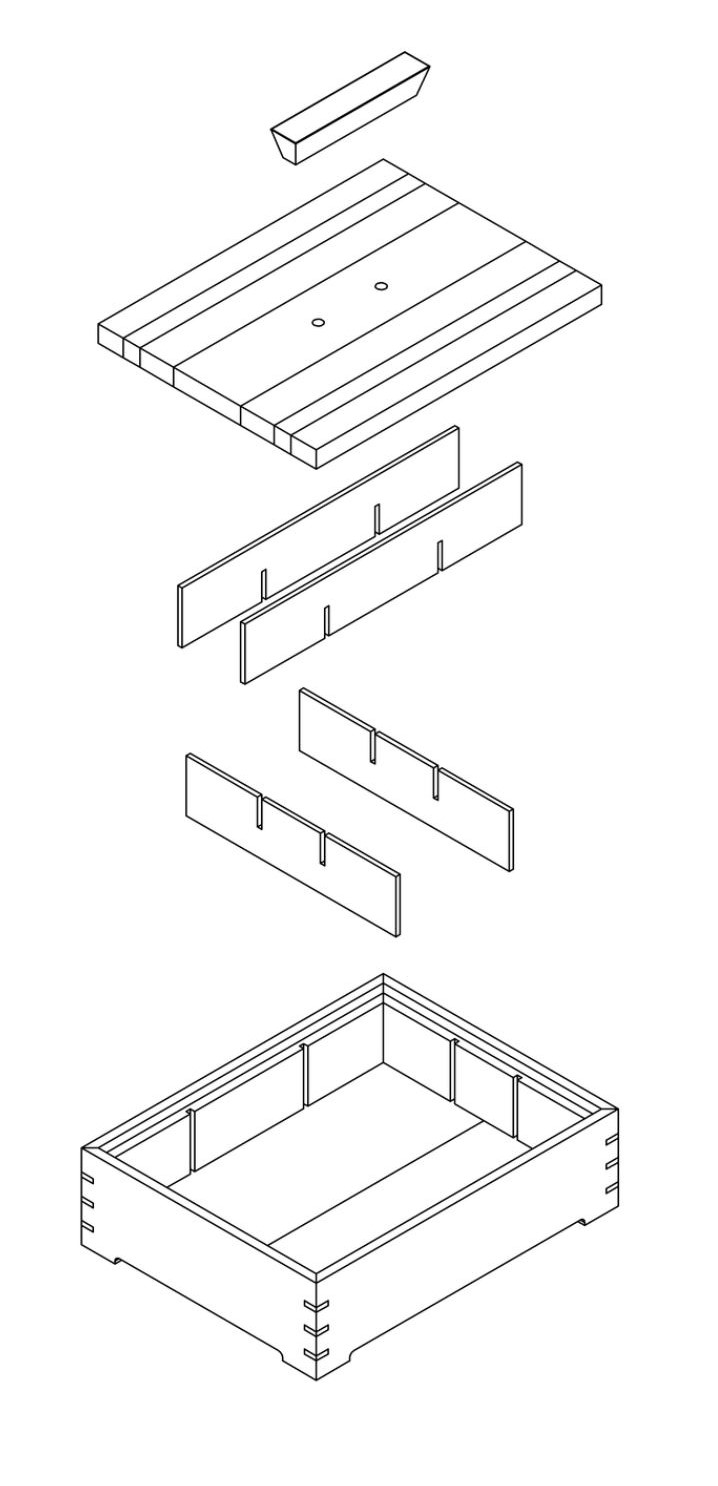

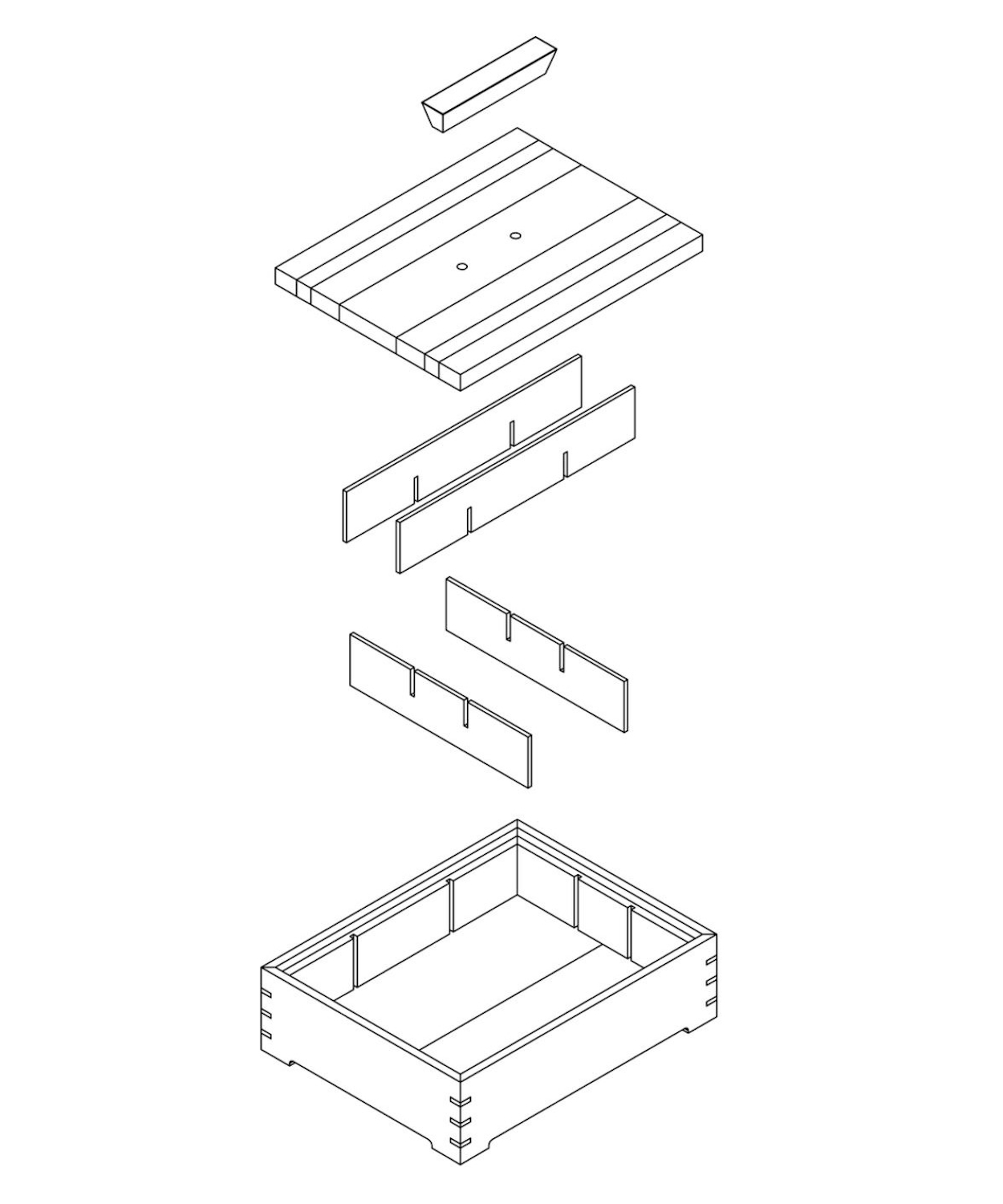

Partial assembly diagram. The dividers are made from 1/8” thick strips that slot into the side panels and intersect through cross halved joints.

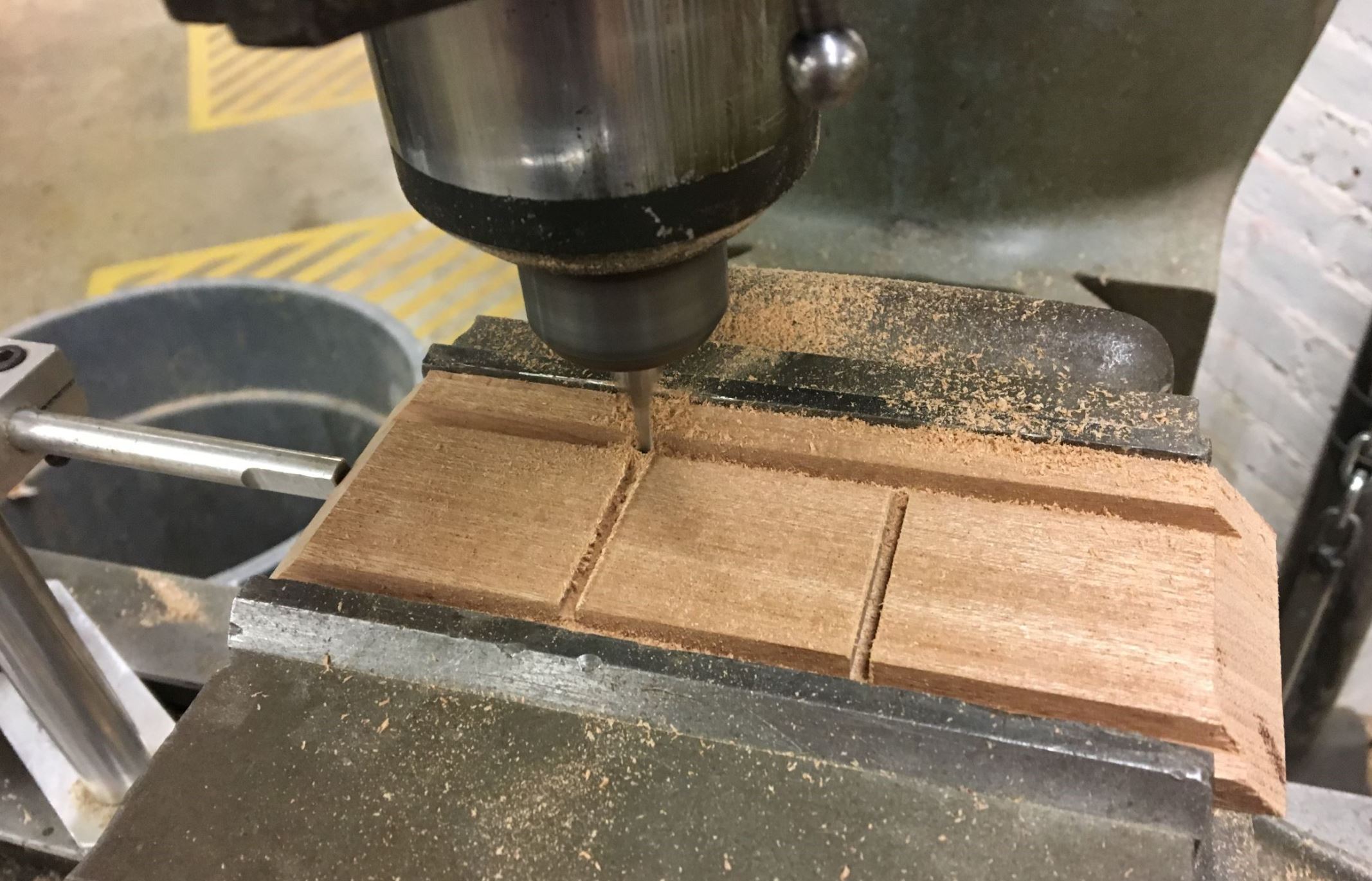

The majority of the box was made using a table saw, however a few details, like the slots for the dividers, were done on a Bridgeport mill.
All surfaces of the box are finished with a urethane gel topcoat.
